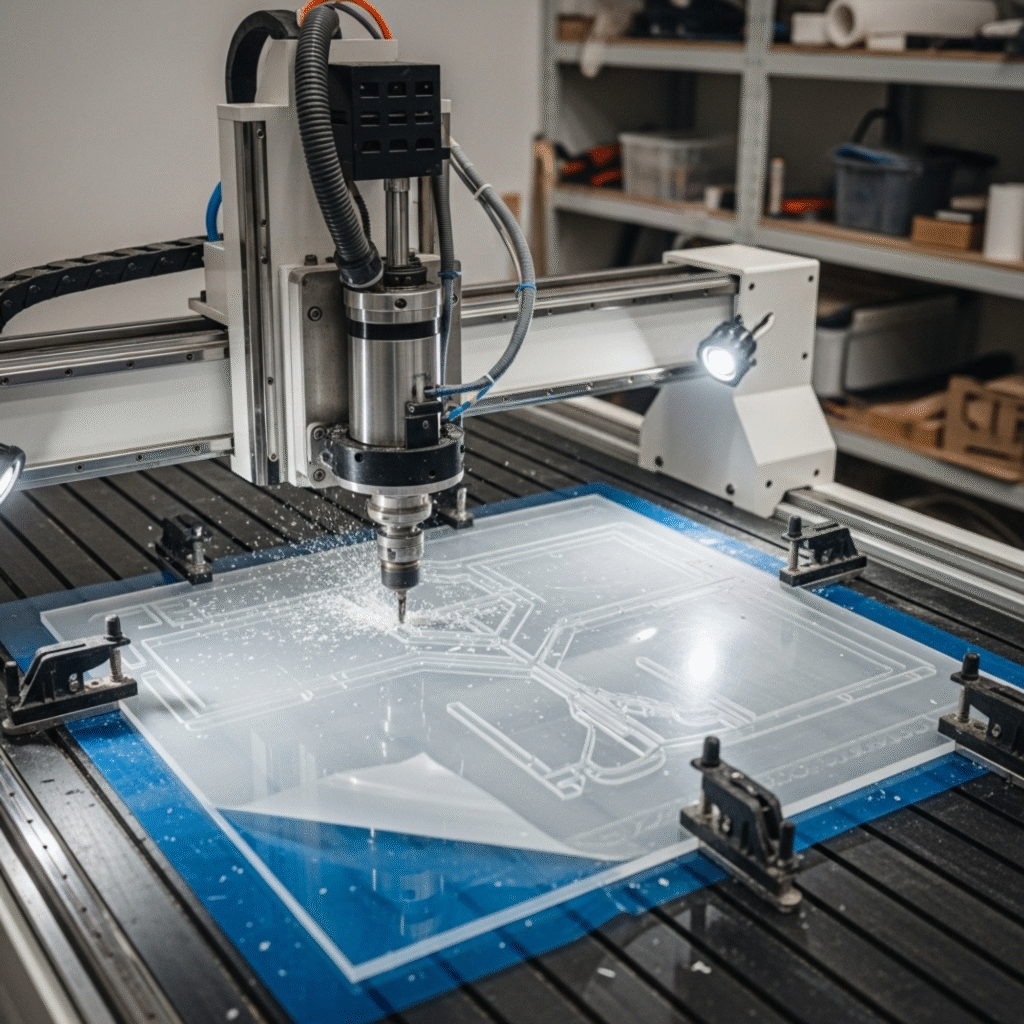

CNC Router for Acrylic Cutting
From vibrant retail displays and intricate signage to precise engineering components, acrylic (often known by trade names like Plexiglas® or Lucite®) offers a world of creative possibilities. However, achieving that crystal-clear, polished edge straight off the machine is a science. It requires the right knowledge, the right tooling, and most importantly, the right machine.
Using the wrong approach can lead to melting, chipping, and cloudy finishes. This guide will walk you through the professional techniques for machining acrylic and demonstrate why an XPROCNC machine is the perfect CNC Router for Acrylic Cutting.
Not All Acrylic is Created Equal: Cast vs. Extruded
The single most important factor for success is the type of acrylic you are using.
- Cast Acrylic: This is the ideal choice for CNC routing. It’s harder, more dimensionally stable, and has a higher melting point. When cut, it produces small, manageable chips and results in a clean, often frosty, edge that can be easily polished.
- Extruded Acrylic: This type is less expensive but is much more challenging to machine. It has a lower melting point, making it prone to melting and welding back onto the cutting tool. It produces long, gummy chips and requires more careful control of feeds and speeds.
For the best results and fewer headaches, we always recommend using cast acrylic for CNC fabrication.
Key Machine Features for a Flawless Acrylic Finish
Achieving a clean cut in acrylic is a battle against vibration and heat. A machine must be engineered to win both.
1. Superior Rigidity and Vibration Dampening
Chatter (high-frequency vibration) is the enemy of a clear finish, causing tiny stress fractures and a cloudy appearance on the cut edge. XPROCNC machines are built with heavy, welded steel frames that absorb vibration, ensuring the cutting tool moves smoothly through the material for a pristine, glass-like edge.
2. High-Speed Spindle with Precise RPM Control
Heat is controlled by balancing spindle speed (RPM) with feed rate. An underpowered spindle or one without precise control can’t maintain the optimal speed, leading to melting. Our high-frequency spindles allow you to dial in the exact RPM needed to get a clean cut without generating excess heat.
3. Excellent Chip Evacuation
If chips aren’t cleared from the cut path immediately, they will melt from the friction of the tool and fuse to the acrylic surface. A powerful dust collection system, paired with a well-designed dust shoe, is essential for pulling chips away, keeping the cut cool and clean.
Tooling is Everything: The Magic of the O-Flute Bit
You cannot use standard woodworking bits on acrylic. The key to success is using bits designed specifically for plastics.
- Single Flute or ‘O-Flute’ Bits: These are the industry standard for acrylic. Their unique spiral geometry is designed to produce large, clean chips and eject them from the cut path with maximum efficiency. This is the single best way to prevent melting. They are available in straight, up-cut, or down-cut spirals.
- Up-cut vs. Down-cut: An up-cut bit pulls chips up and out, which is excellent for chip evacuation. A down-cut bit pushes chips down, which can help hold the sheet down but requires excellent dust collection to avoid melting.
For expert tooling advice, resources from manufacturers like Onsrud are invaluable for plastic applications.
Popular Applications for CNC-Cut Acrylic
A CNC Router for Acrylic Cutting is a cornerstone of modern fabrication, enabling businesses to produce high-value products.
- Dimensional Signage: Create stunning 3D logos and letters for indoor and outdoor use.
- Retail & POS Displays: Fabricate custom product stands, shelving, and display cases.
- Architectural Elements: Produce light diffusing panels, decorative screens, and models.
- Protective Barriers: Quickly and accurately cut sneeze guards and safety shields.
- Custom Awards & Trophies: Engrave and shape unique recognition pieces.
- LED Signage: Cut light guide panels and custom-shaped illuminated signs.
Why XPROCNC is the Professional’s Choice
When you invest in an XPROCNC machine, you’re investing in the precision and stability needed to master challenging materials like acrylic.
- Engineered for Precision: Our rigid frames and precision drive systems provide the smooth, chatter-free motion required for a polished edge.
- Versatility: The same machine that produces a perfect acrylic finish can also flawlessly cut wood, ACM, aluminum, and more, maximizing your shop’s capabilities. See how it handles other materials on our
[Link to your CNC Router for ACM Panels page]. - Expert Support: We provide the guidance you need to select the right machine, tooling, and settings to succeed from day one. Your success is our mission.
Ready to produce stunning, crystal-clear acrylic parts?
Explore our range of CNC routers or contact our team to discuss your specific application.
Frequently Asked Questions (FAQ)
How do I stop my acrylic from melting when I cut it?
The key is a combination of three things: 1) Use a single-flute (O-flute) bit designed for plastic. 2) Increase your feed rate—moving too slowly is a common cause of melting. 3) Ensure excellent chip evacuation with a powerful dust collector.
What is the best CNC bit for cutting acrylic?
A solid carbide, single-flute spiral ‘O-flute’ bit is the undisputed best choice. It provides the best chip evacuation and leaves the cleanest finish.
Do I need a coolant or misting system for cutting acrylic?
While some industrial applications use it, a misting system is generally not necessary for most acrylic cutting and can make a mess. A better solution for heat control is compressed air blast directed at the tool, which cools the cut and helps clear chips without any liquid.
What’s the difference between cutting and engraving acrylic?
Cutting goes all the way through the material, typically with an O-flute bit. Engraving only removes a small amount of material from the surface, often with a V-groove or ball-nose bit, to create text or logos. Cast acrylic produces a beautiful frosty white finish when engraved.
