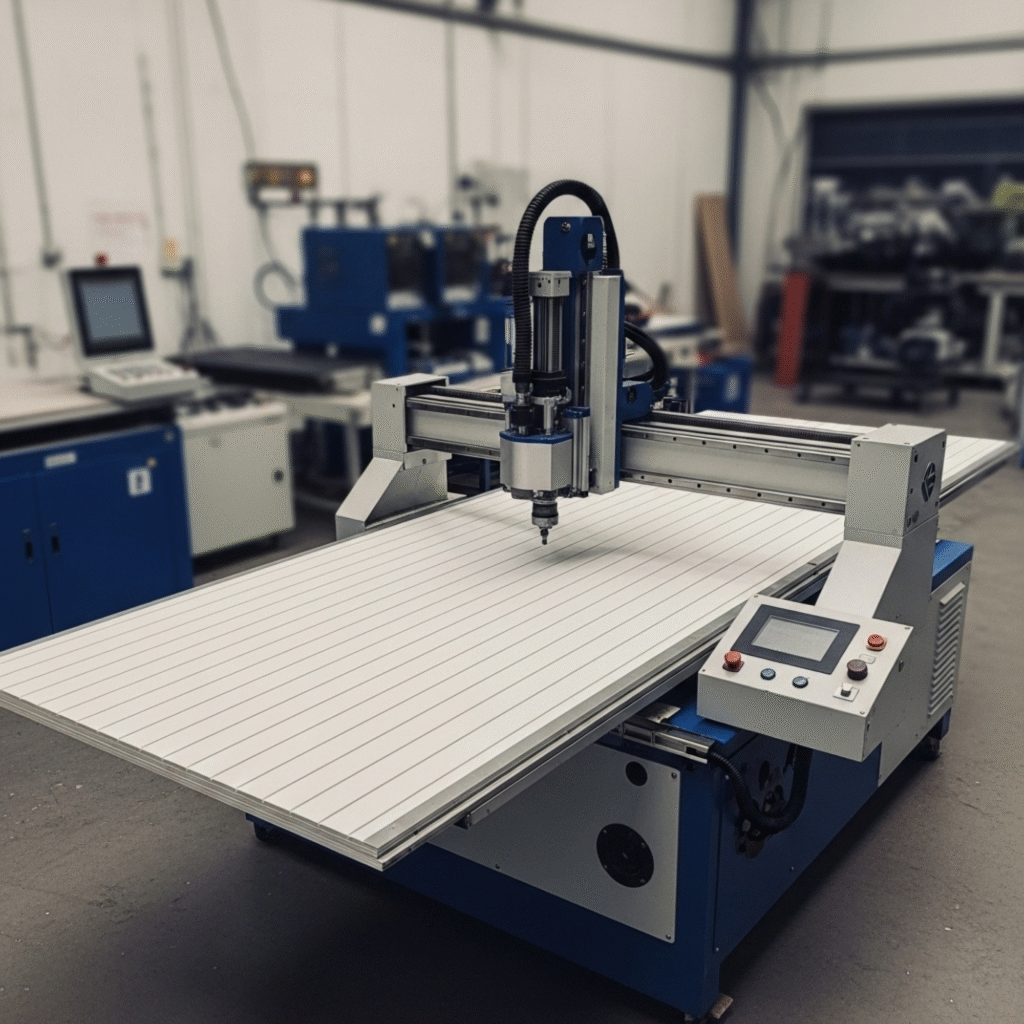

CNC Router for ACM Panels

In the competitive worlds of architectural fabrication, corporate signage, and retail displays, Aluminum Composite Material (ACM) has become a go-to choice for its sleek finish, rigidity, and light weight. However, processing these panels efficiently and flawlessly requires a specific tool: a CNC Router for ACM Panels that is built for both speed and precision.

A standard woodworking router can struggle with the unique composition of ACM. At XPROCNC, we provide robust CNC solutions engineered to handle the specific demands of ACM fabrication, from high-speed profiling to perfect V-grooves for folding. This guide covers the essential features your business needs to unlock the full potential of ACM.

What Are ACM Panels?

ACM consists of two thin aluminum sheets bonded to a solid polyethylene (PE) or fire-retardant (FR) core. You probably know it by popular brand names like Dibond®, Alucobond®, or Reynobond®. This composite structure is what gives the material its unique properties, but it also presents a unique machining challenge.

Why You Need a Specialized CNC Router for ACM

Processing ACM isn’t just about cutting; it’s about achieving a perfect edge finish and, crucially, enabling fabrication techniques like folding.

• Flawless Edges: The goal is to cut through both aluminum skins and the core without delamination, burrs on the aluminum, or melting the core.
• High Throughput: Sign and fabrication shops process dozens of large sheets (e.g., 4×8 ft, 5×10 ft) daily. Machine speed and efficiency are critical for profitability.
• V-Grooving Accuracy: The ability to cut a precise V-groove to a consistent depth is essential for creating sharp, clean 90° or 135° folds for architectural cassettes and 3D structures. This requires a machine with zero vibration and exceptional Z-axis control.

Key Machine Features for Flawless ACM Processing

When investing in a CNC router for ACM panels, these are the features that make a tangible difference in quality and productivity.

1. Large-Format Vacuum Table

This is the most critical feature for ACM work. A powerful, multi-zone vacuum table holds large, thin sheets perfectly flat against the machine bed. This eliminates sheet vibration, ensures consistent cutting depth (especially for V-grooving), and dramatically speeds up job setup compared to manual clamping.

2. Automatic Tool Changer (ATC)

An ATC is a game-changer for efficiency. A typical ACM job may require switching from a profiling bit (for cutting the outline) to a V-grooving bit. An ATC automates this process, eliminating manual downtime, reducing operator error, and maximizing machine output.

3. High-Frequency Spindle & Precision Drive System

A powerful, high-RPM spindle allows for faster feed rates, meaning you can cut panels more quickly. When paired with a responsive rack and pinion drive system, our machines can traverse large sheets rapidly while maintaining the rigidity needed for a smooth, chatter-free cut.

4. Rigid, Heavy-Duty Frame

A heavy, welded steel frame is the foundation of a great cut. It dampens vibrations that would otherwise transfer to the cutting edge, causing imperfections on the aluminum skin and inconsistent groove depth. This is a core feature of every XPROCNC machine.

Mastering ACM Fabrication Techniques

An XPROCNC router empowers you to perform the two primary ACM machining operations with perfection.

• Profiling (Cutting): This is cutting the complete outline of a part. Using a specialized compression bit, the machine cuts cleanly through the top aluminum skin, the core, and the bottom skin in a single pass, leaving smooth, sharp edges.
• V-Grooving (Folding): This technique involves using a V-shaped bit to rout through the back aluminum skin and most of the core, leaving the front skin and a thin layer of the core intact. This creates a precise hinge, allowing the panel to be folded by hand into a crisp, sharp corner.

The Right Tooling is Crucial

Using the correct CNC bits is essential for quality results.

• For Cutting: Solid carbide compression spiral bits are highly recommended. They feature up-cut and down-cut flutes, which compress the material towards the center, resulting in perfectly clean top and bottom edges.
• For V-Grooving: Specialized V-groove bits are available in various angles (90° and 135° are common) and tip styles to create the perfect channel for folding.

For an excellent overview of fabrication techniques, manufacturers like 3A Composites provide detailed guides for their Dibond® material.

XPROCNC: The Smart Choice for Your Fabrication Business

Choosing the right machine is a critical business decision. An XPROCNC router is not just a purchase; it’s an investment in productivity, quality, and capability.

• Optimized for Your Industry: Our large-format machines with vacuum tables and optional ATCs are designed specifically for the workflows of sign makers and architectural fabricators.
• Versatility: While it excels at ACM, your XPROCNC machine is also perfectly capable of processing acrylic, plastics, wood, and even other non-ferrous metals like aluminum, giving you a wider range of services to offer.
• Expert Support: We provide comprehensive training and support to ensure your team can get up to speed quickly and maximize the return on your investment.

Ready to elevate your ACM fabrication capabilities?

Explore our recommended CNC models for sign making and fabrication, or contact our team for a personalized quote.

CARINA

Xpro CNC

Frequently Asked Questions (FAQ)

What is the best CNC bit for cutting ACM/Dibond®?

For cutting through the material (profiling), a solid carbide compression spiral bit (often called a “mortise compression” bit) provides the cleanest finish on both the top and bottom aluminum surfaces.

Do I need a coolant or misting system for ACM?

Generally, no. ACM is typically machined dry. The key is to use very sharp tooling and an appropriate feed rate to prevent heat buildup and melting of the polyethylene core. A good dust collection system is far more important.

What is the difference between a PE and FR core in ACM?

PE is a standard polyethylene core. FR is a fire-retardant core, which contains mineral compounds. FR cores are slightly more abrasive on tooling but are machined using the same techniques and equipment.

How important is a vacuum table for ACM panels?

It is extremely important. We consider it an essential feature. It is the fastest, most effective way to hold large sheets perfectly flat, which is a requirement for accurate cutting and consistent V-groove depth.
